baggage information at the tip of your finger

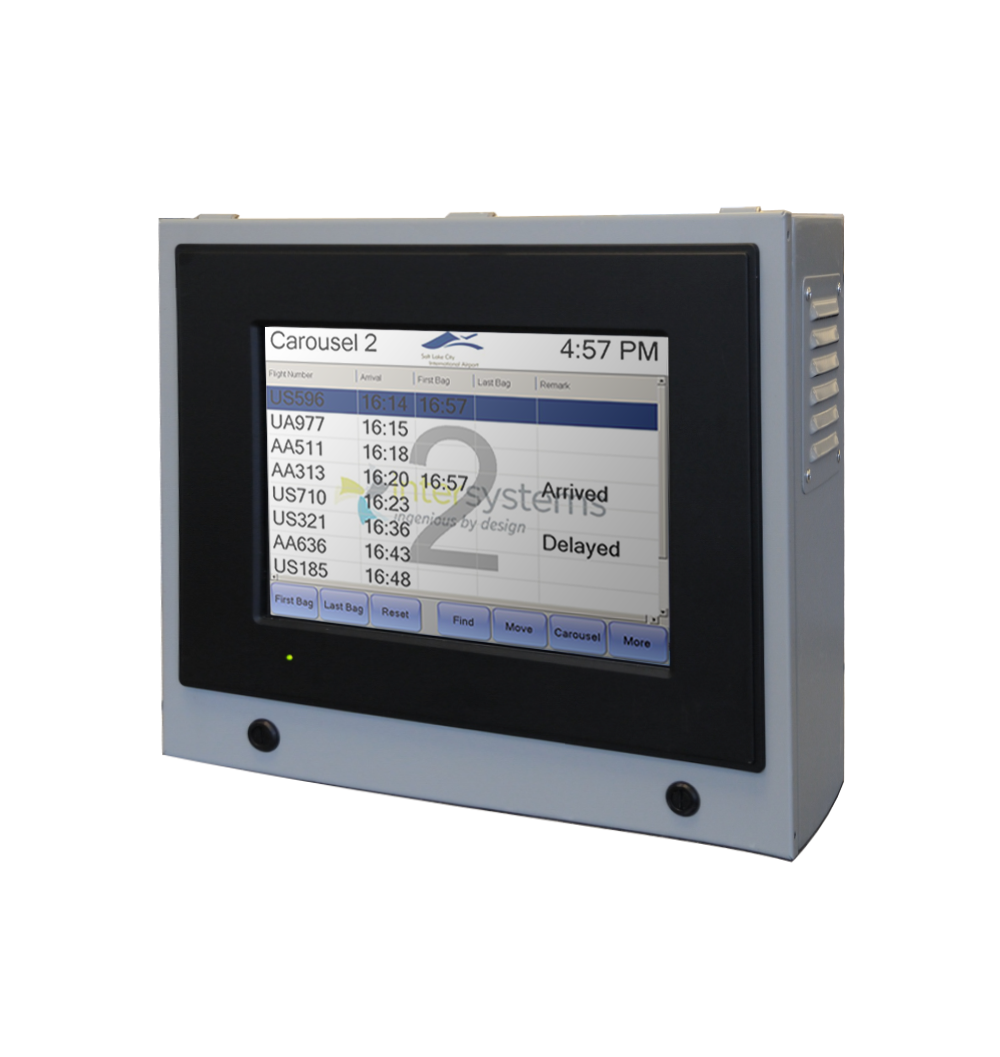

A capable, touchscreen baggage input device delivering precise functionality and value.

TBID

purpose
designed and built for airports

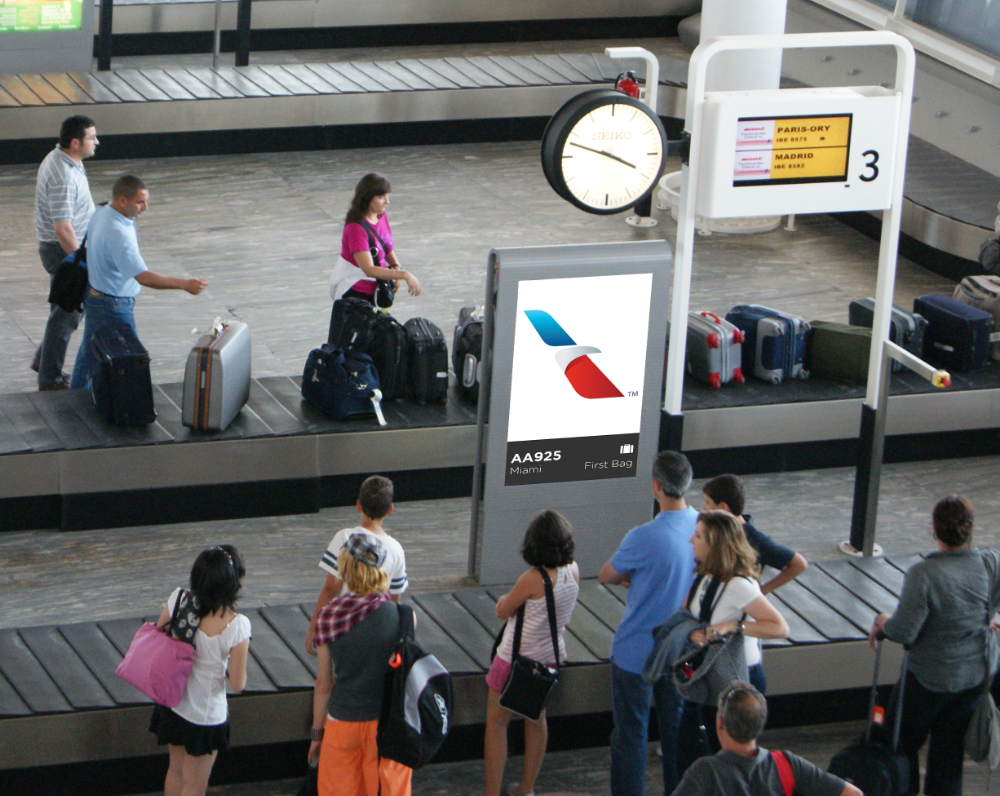

Airports are unique environments that sometimes require purpose-built, solution-focused hardware to meet a specific operational need. Intersystems innovative TBID is a modern touchscreen device which does away with excess hardware and packs in all the right ingredients to deliver real functionality and value.

The industrial grade console utilises a modern touchscreen display, decreasing hardware whilst still allowing the TBID to provide the necessary mix between interactive functionality and information at a glance.

Download Brochure

Tech Spec

  1. Input Devices
  2. TBID

TBID

Processor

VIA C7 1.0 GHz (9W)

Memory

512 MB onboard memory

Storage

40 GB Anti-vibration Internatl 2.5" HDD

Display and Graphics

12" Infrared (IR) touch screen
Activated by finger, gloved hand, leather or soft stylus

800x600 resolution

Network

10/100 Mbps

Pyhsical

Height: 356.0 mm (14.00")
Width: 407.0 mm (16.00")
Depth: 178.0 mm (7.00")
Weight: 12.25 kg (27 lbs)

Environmental

NEMA 4/IP64 Sealed Water/Dust resistent

0˚C ~ +45˚C (+32˚F ~ +113˚F) with an airflow of 1.2 m/sec (3.9 ft/sec)

Software

Windows 7 (or higher)

Limited Warranty

Your TBID comes with a one-year limited RTB warranty. Purchase Intersystems Support Pack to extend your service and support to three years from your date of purchase.

In the Box

TBID Touchscreen Baggage Input Device
3 m Cat6 Patch Cable
External Power Supply
C14 Power Cable

All specifications are subject to change without notice. Errors and omissions are excepted. 13 SEP 2016
