GMC8sa

GMC8sa

the flexibility to standalone

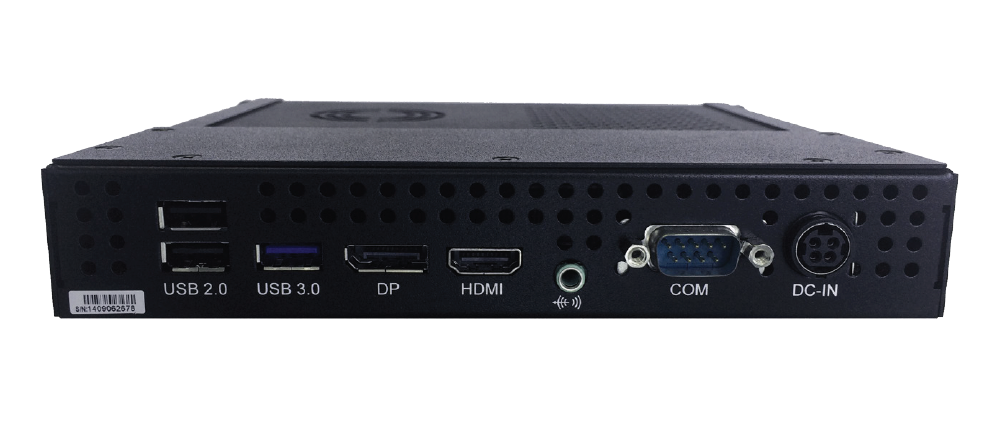

The GMC8 standalone (GMC8sa) provides the flexibility for the GMC8xp and GMC8ip digital display controllers to work with non-OPS equipped displays.

Screenshot

the connectivity to power ahead

Flexibility doesn’t come at a cost - the GMC8 maintains full functionality of its inbuilt connectors and you’ll gain the extra connector options that are built into the rear output of the GMC8sa.
Download Datasheet

Tech Spec

GMC8sa

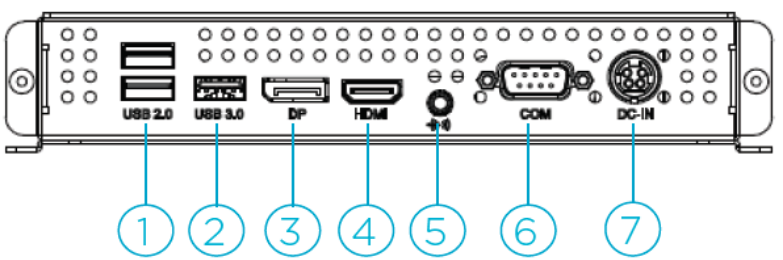

Connections and Expansion

  • 1. USB 2.0 x2
  • 2. USB 3.0 x1
  • 3. DisplayPort
  • 4. HDMI
  • 5. Audio (Line-in/Line-out)
  • 6. Com Port
  • 7. DC Power Input
GMC8sa

Pyhsical

Height: 36.5 mm (1.44")
Width: 200.5 mm (7.89")
Depth: 173.9 mm (6.85")
Weight: 0.2 kg (0.44 lbs)

Dimensions exclude External Power Supply


Environmental

0˚C ~ +45˚C (+32˚F ~ +113˚F) with an airflow of 1.2 m/sec (3.9 ft/sec)


Certifications

CE, FCC, RoHS


Limited Warranty

Your GMC8sa comes with a one-year limited RTB warranty. Purchase Intersystems Support Pack to extend your service and support to three years from your date of purchase.


In the Box

GMC8sa OPS Digital Display Controller
External Power Supply
C14 Power Cable


All specifications are subject to change without notice. Errors and omissions are excepted. 13 SEP 2016
